304 S.S. impeller
304 S.S mechanical seal
Cast iron pump body and support be electrophoresis
Suction: 8M
Liquid: clean water;《50°C
Liquid PH value: 6.5-8.5
Copper wire
With thermal protector
304 S.S shaft
Insulation class: B
IPX4
Ambient temperature: up to +40°C Liquid temperature: up to +40°C
Max.Working pressure: 6bar
It can be used to transfer clean water or other liquid similar to water in physical and chemical properties. It is suitable for small living water supply; automatic water sprinkler system, small air conditioner system and supporting equipment etc.
| MODEL | POWER | MAX.FLOW (Lmin) | MAX.HEAD (m) | MAX.SUCT (m) | INLET/OUTLET (in) | GW (kg) | PACKING DIMENSION (mm) | |
| kW | HP | |||||||

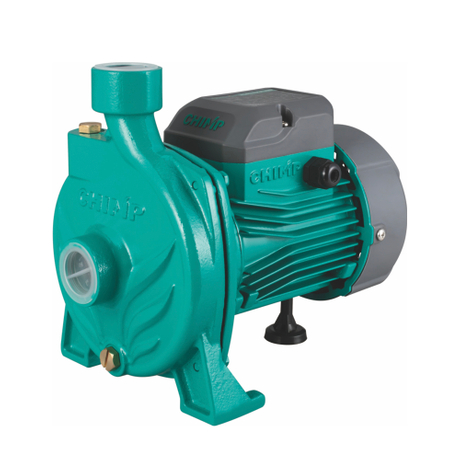

| CHPM-130 | 0.37 | 0.5 | 80 | 20 | 8 | 1"×1" | 9 | 275×180×230 |
| CHPM-146 | 0.55 | 0.75 | 95 | 25 | 8 | 1"x1" | 11 | 330×210×265 |
| CHPM-158 | 0.75 | 1 | 120 | 30 | 8 | 1"×1 | 12 | 350×205×270 |
| CHPM-180 | 1.1 | 1.5 | 130 | 35 | 8 | 1"×1" | 21 | 400×240×310 |
| CHPM-200 | 1.5 | 2 | 140 | 40 | 8 | 1"×1' | 23 | 400×240×310 |

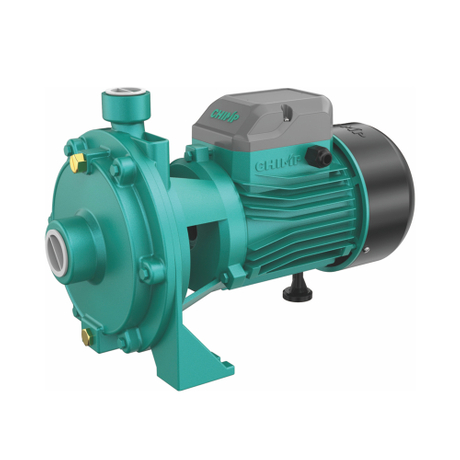

| 2MCP25/140 | 1.1 | 1.5 | 110 | 40 | 8 | 11/4"×1" | 23 | 445×243×300 |
| 2MCP160/160 | 1.5 | 2 | 120 | s5 | 8 | 11/4"×1" | 25 | 445×243×300 |
| 2MCP160/160B | 1.5 | 2 | 120 | 5s | 8 | 11/4"×1" | 25 | 465×255×310 |
| 2MCP180/180 | 2.2 | 3 | 130 | 65 | 8 | 114"×1" | 30 | 445×243×300 |
| 2MCP50/200 | 1.5 | 2 | 110 | 60 | 8 | 11/2"x11/4" | 25 | 485×260×320 |
| 2MCP50/300 | 2.2 | 3 | 160 | 65 | 8 | 11/2"x11/4" | 27 | 485×260×320 |
